1. Filament Reinforced Overview

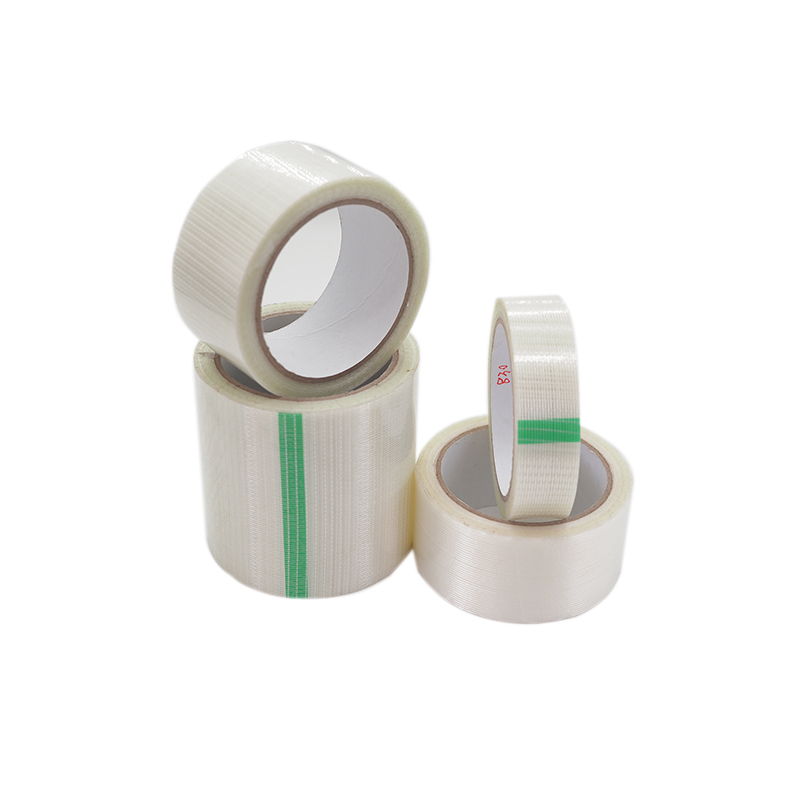

Filament Reinforced Tape combines fiberglass yarn, PET film and packaging adhesive for transport securing and heavy carton work. The family includes mono-directional, cross and double-sided types.
2. FT Model Performance Table
| FT model | Construction summary | Declared performance |
|---|---|---|
| 714 | 140 μm mono | 500 N/25 mm; 72 h hold |
| 720 | 130 μm mono | 600 N/25 mm; 72 h hold |
| 715 | 160 μm mono | 700 N/25 mm; 72 h hold |
| 830 / 850 / 870 | 150–180 μm cross | 550–700 N/25 mm; 36 h hold |
| 930 / 950 | 260 / 280 μm double-sided | 400 N/25 mm; 24 h hold |
Every listed model has elongation below 6%; initial ball tack is 10 or 15.
3. PET Yarn Load Control

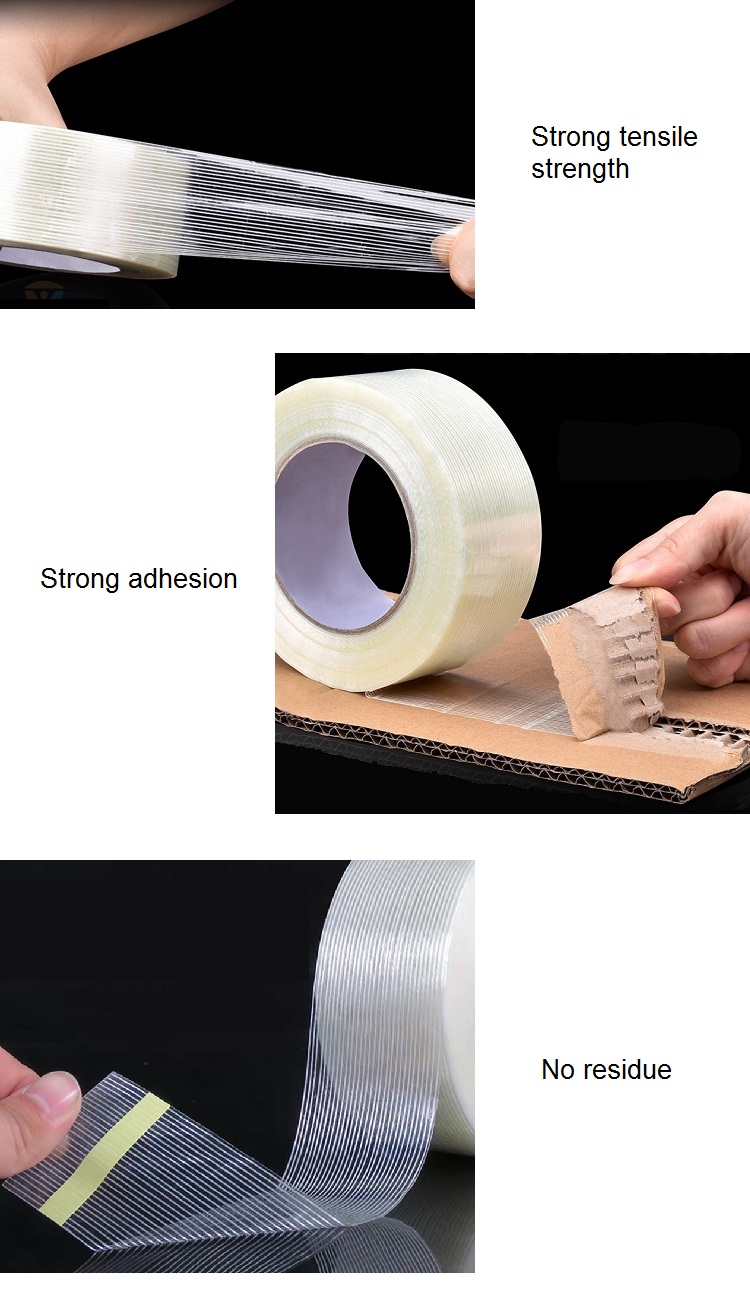

Fiberglass carries tensile load, PET resists abrasion and moisture, and the adhesive holds the reinforced web to the package. Yarn direction determines how the tape responds to spreading forces.
4. Transport Packing Uses

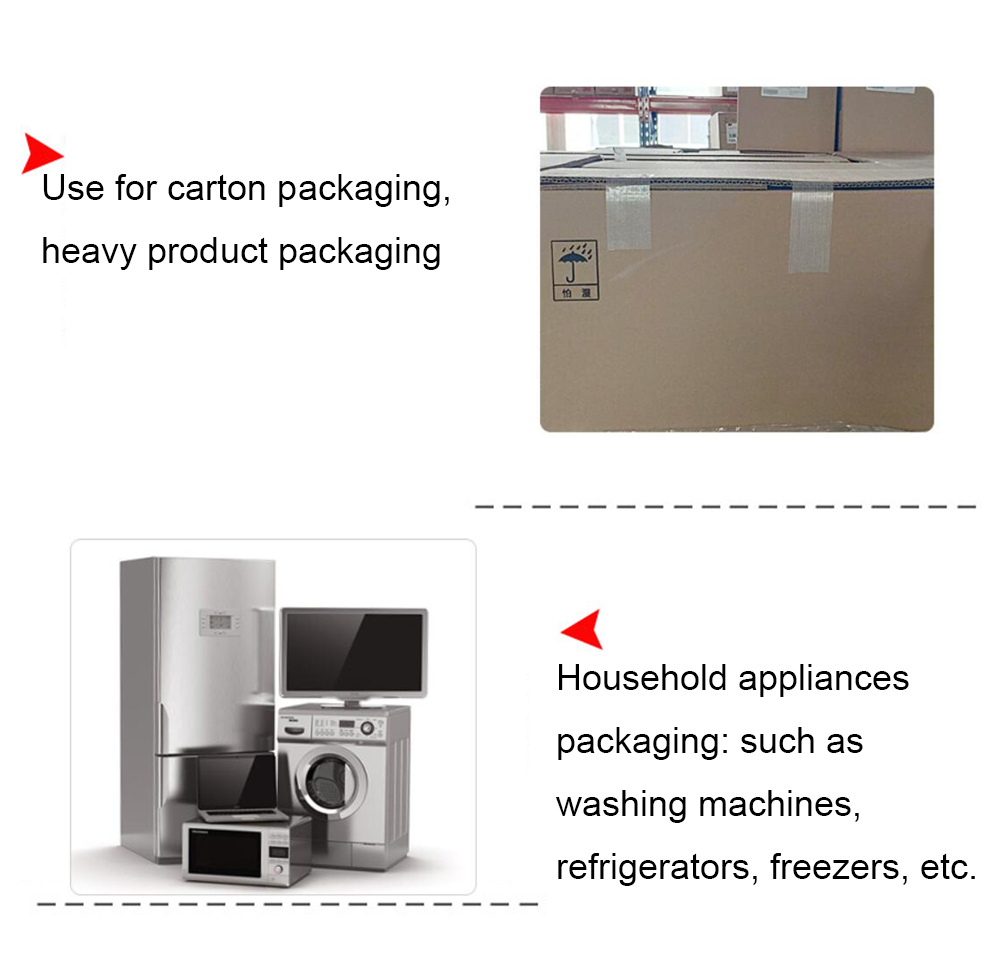

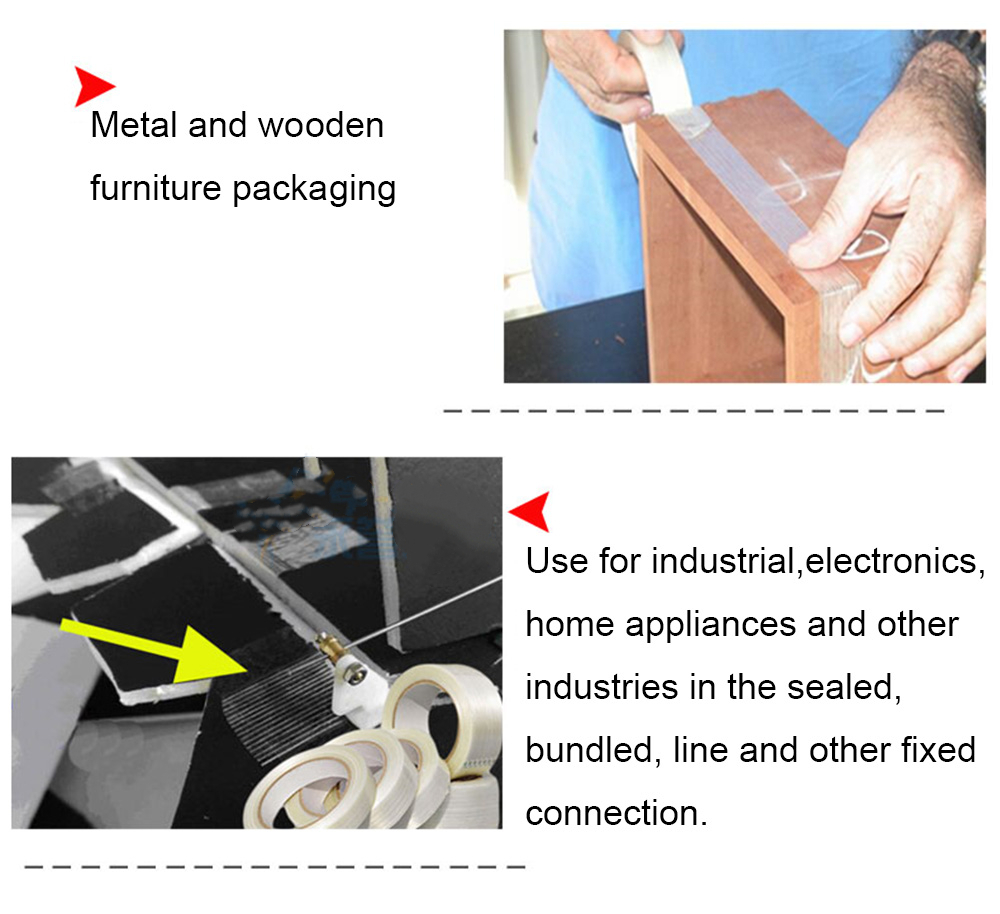

Applications include pallets, appliance transport, edge protection, bulky cartons, heavy bundling, pipeline and cable wrapping. Select the model from load direction and required holding time.

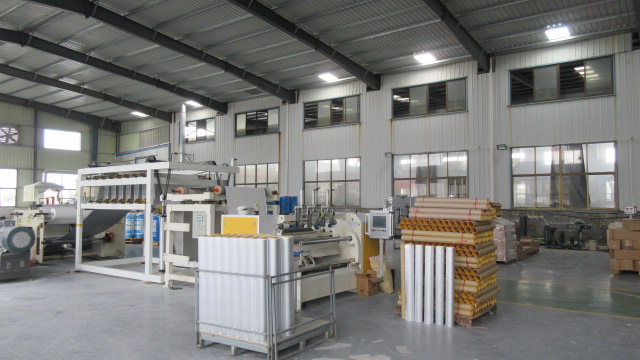

5. Reinforced Tape Production
Manufacturing aligns the selected yarn layout, laminates PET, coats adhesive and slits the web. Clean edges and stable filament placement improve dispensing.
6. FT Grade Inspection
Check FT code, thickness, tack, hold, tensile and elongation. The actual carton or appliance packaging should be trialled under transport-like load.

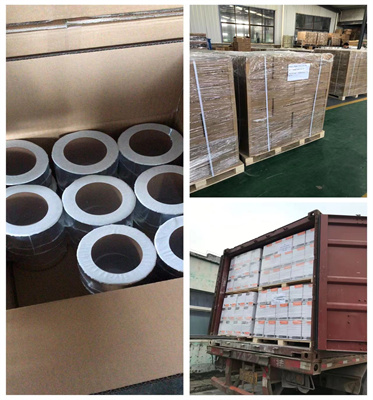

7. Industrial Carton Supply
Industrial orders should specify model, width, length, core, carton count and label. Avoid substituting mono, cross and double-sided constructions.
8. Filament Reinforced FAQ
Which models are cross filament? FT-830, FT-850 and FT-870.
Which grades hold for 72 hours? The three mono-directional entries.
Why is elongation below 6% useful? Low stretch helps maintain bundle geometry.
Packaging teams increasingly reference the FT model directly in work instructions.
